 Post subject: How to install Plug 'N' Play 2009-2011
PostPosted: Tue May 10, 2011 10:21 pm
Offline
Team Axis
User avatar

Joined: Tue Jun 08, 2010 7:22 pm
Posts: 1321
Location: BoomTown!
List of parts
4 w742 quick connect fittings
3 w740 quick connect fittings
3 FlyHigh bags made for axis
or just get a kit with everything

Start by removing the the cover under the skybox seat and the engine cover, remove all hoses from the vented loops and take off the 2 inner vented loops, (these just keep the water from syphoning out of the bags, you only need 1 per side) follow the hose from the pump and hook it to the inner leg of the loop, then run another hose from the outer leg to the top of the bag, then take the one going into the floor hooked to the tank and hook it to the front lower port on the bag. Do this on both sides and you're done in the rear section.


Attachments:

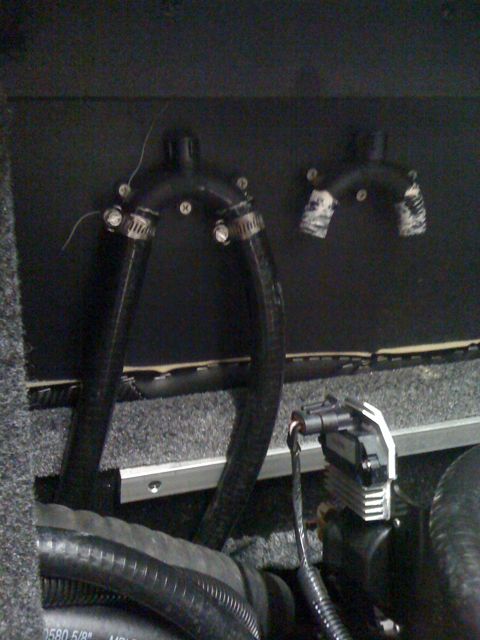

File comment: look on the seat back just in front of the engine, locate the 4 plastic hoops, 2 on each side with hose attached to each, remove all of the hoses from the hoops
IMG_1037.jpg [ 50.09 KiB | Viewed 141566 times ]

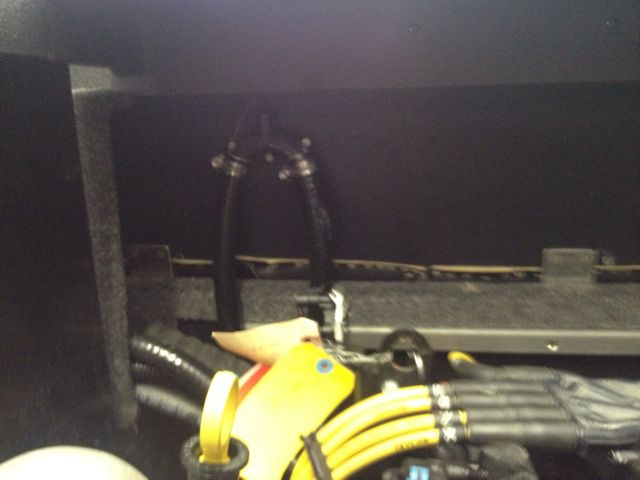

File comment: on each side remove the hoop closest to the engine, you do not need 2 on each side, 1 for the left and 1 for the right is sufficient
IMG_2050.jpg [ 35.57 KiB | Viewed 141565 times ]

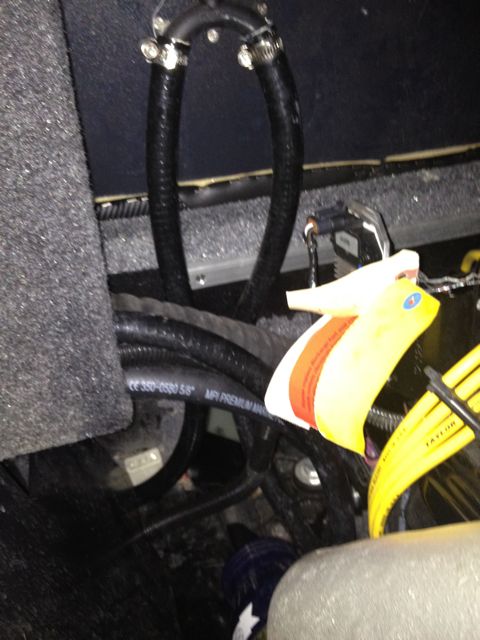

File comment: follow the hoses from the pumps, (next to the transmission) up to the hoops and connect the pump hose to the inside hoop leg, the one closest to the engine, do this on each side
IMG_2055.jpg [ 51.63 KiB | Viewed 141566 times ]


Last edited by Walter on Tue May 29, 2012 11:00 pm, edited 10 times in total.
Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Tue May 10, 2011 10:21 pm
Offline
Team Axis
User avatar

Joined: Tue Jun 08, 2010 7:22 pm
Posts: 1321
Location: BoomTown!
.


Attachments:
File comment: its not necessary but if you want the bags to drain and not take forever remove the cover for the tank fill and vent and turn the forward fitting so it faces forward, I went counterclockwise just to make sure
I didn't over tighten it.

IMG_1045.jpg [ 60.05 KiB | Viewed 141566 times ]
File comment: put the thin hard plastic line on the rear outlet and let it point toward the engine(this is the factory vent line), take the extra piece of hose you removed from the hoops and attach it to the fitting facing forward
IMG_1049.jpg [ 45.65 KiB | Viewed 141566 times ]
File comment: this hose will connect to the front lower port of the bag
IMG_1054.jpg [ 52.63 KiB | Viewed 141566 times ]


Last edited by Walter on Tue May 29, 2012 9:28 pm, edited 7 times in total.
Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Tue May 10, 2011 10:22 pm
Offline
Team Axis
User avatar

Joined: Tue Jun 08, 2010 7:22 pm
Posts: 1321
Location: BoomTown!
When you are finished with the rear section you should follow your hoses to make sure they are right, start at the pump in the floor, then it should go to a hoop on the seat back, from the hoop to the top of the bag, from the front lower port on the bag to the tank, done, I have tried many ways on hooking up the bags and this is the most foolproof and hassle free way to do it without spending a ridiculous amount of money trying to save yourself 5 minutes.


Attachments:

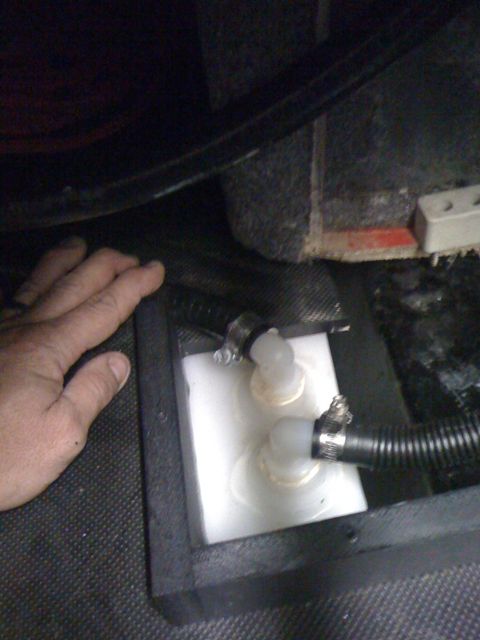

File comment: try to keep this hose between 18-24 inches and I recommend not using a quick connect fitting, it drains faster without all the 90 deg fittings, if you have to use one get a straight fitting
IMG_1036.jpg [ 41.58 KiB | Viewed 141566 times ]

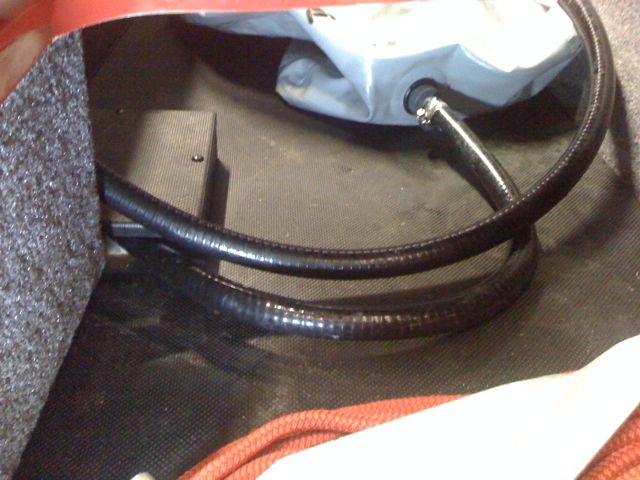

File comment: loop it around to the front of the bag and hook it up
IMG_1040.jpg [ 55.03 KiB | Viewed 141565 times ]

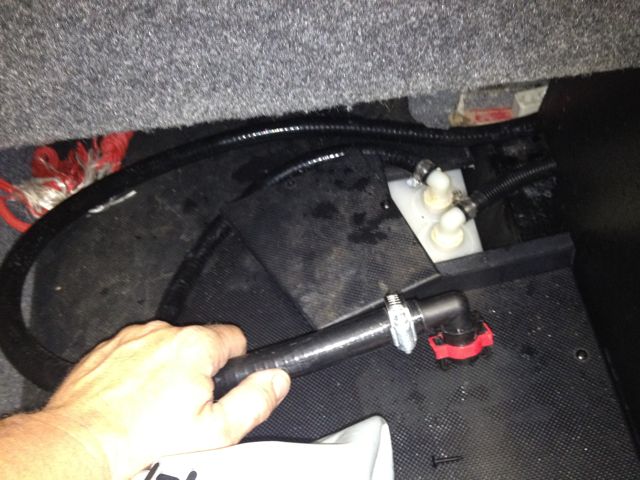

File comment: now take the leftover longest hose you have and put a 90 deg quick connect fitting on it and hook it to the top of the bag, run the other end over by the tank lines and run it up to the loop on the seat back
IMG_2056.jpg [ 59.4 KiB | Viewed 141565 times ]


Last edited by Walter on Tue May 29, 2012 9:42 pm, edited 5 times in total.
Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Tue May 10, 2011 10:22 pm
Offline
Team Axis
User avatar

Joined: Tue Jun 08, 2010 7:22 pm
Posts: 1321
Location: BoomTown!
Look under the chillax seat and find the Y connector, disconnect the 3 hoses going to it, the one going to the front headed under the helm is the vent, put a 90 deg fitting on this hose and hook it to the top rear of the bag, this is where the most air pockets get trapped and the only way for them to get out, flip the switch that says front to drain and find the hose making noise, hook this hose to the lower rear port of the bag with a straight fitting. the last hose should be the fill hose, I have spent a lot of time messing with the front bag and check valves and all sorts of things and this is the best way so far to fill it and not have problems. First off you will need an extra 6-8' of hose to do this but its cheaper than the check valve anyway. recycle one of the hoops you took off the rear and mount it with 1/2 long screws as high as you can up by the glove box, run the hose from the fill pump to this, run the new hose you purchased from the hoop to the farthest forward port on the bag. I tested last weekend and the bag no longer mysteriously drains or auto-fills due to pressure being behind the check valve, it will now work just like the rear and front tank. no more having to shut off the valve on the pump, just fill and go. be sure to feel the thickness of the fiberglass before you go screwing around, every boat may not be exactly alike, mine had about 1-1/2 inches of thickness right by the radius so there was plenty of material to screw to, just be careful and make sure you don't poke through the other side.


Attachments:

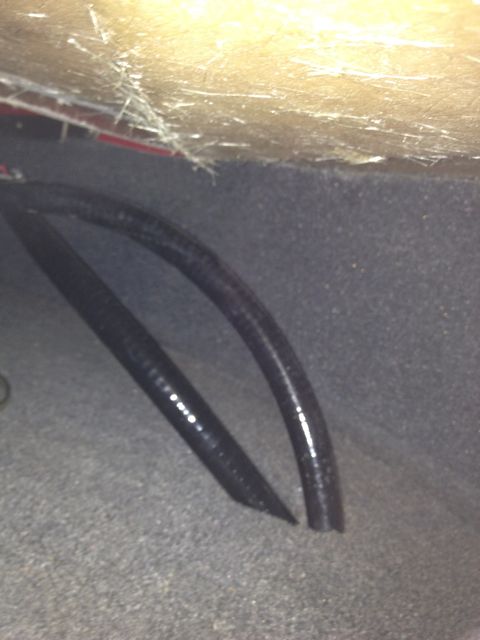

File comment: these are the fill and drain hoses coming up through the floor
IMG_1434.jpg [ 38.89 KiB | Viewed 141564 times ]

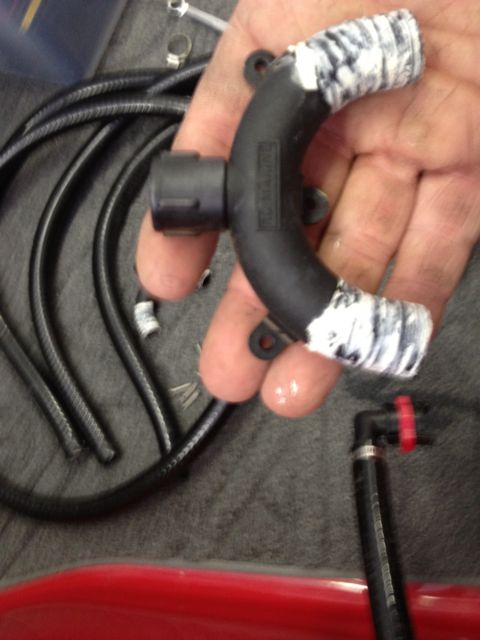

File comment: recycle one of the hoops from the rear
IMG_2059.jpg [ 43.39 KiB | Viewed 141564 times ]

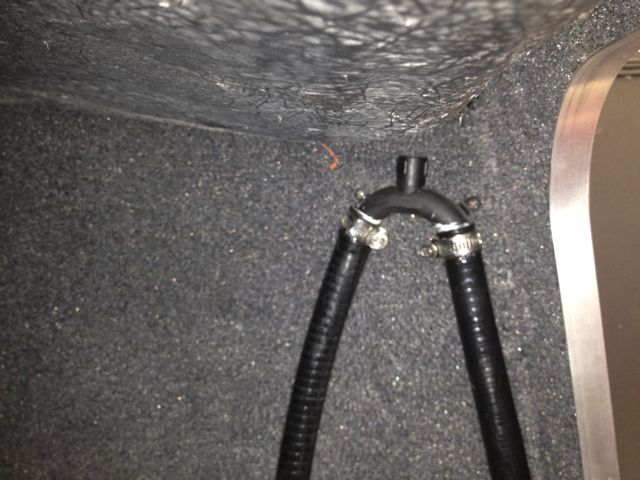

File comment: mount it as high up near the glove box as you can
IMG_2065.jpg [ 56.69 KiB | Viewed 141563 times ]


Last edited by Walter on Tue May 29, 2012 10:06 pm, edited 5 times in total.
Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Tue May 10, 2011 10:22 pm
Offline
Team Axis
User avatar

Joined: Tue Jun 08, 2010 7:22 pm
Posts: 1321
Location: BoomTown!
.


Attachments:
File comment: this is what your front bag should look like, front fitting is fill line, rear top fitting is vent going under drivers footwell, rear lower line is drain, make sure it doesn't have a loop in it or it may not drain without squeezing it first
IMG_2212.jpg [ 48.34 KiB | Viewed 141562 times ]
File comment: this is the front bag fill pump and just above it is the tank vent line
IMG_1433.jpg [ 41.2 KiB | Viewed 141562 times ]
File comment: these are the tank drain and fill pumps
IMG_1447.jpg [ 27.83 KiB | Viewed 141562 times ]


Last edited by Walter on Tue May 29, 2012 10:22 pm, edited 7 times in total.
Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Tue May 10, 2011 10:22 pm
Offline
Team Axis
User avatar

Joined: Tue Jun 08, 2010 7:22 pm
Posts: 1321
Location: BoomTown!
.


Attachments:

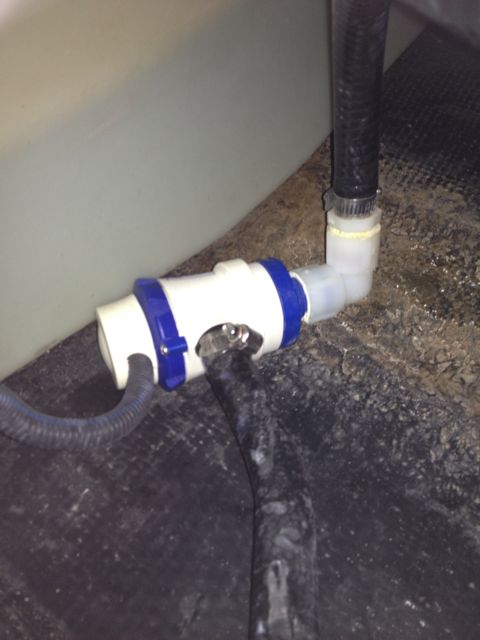

File comment: this is the front bag drain pump, its not mounted to anything, mine was zip-tied to the other pumps but I took it loose so you guys could see how it is oriented in this small space,
IMG_1437.jpg [ 37.25 KiB | Viewed 141561 times ]
File comment: anyone installing the Plug 'n' Play bags should definitely consider getting one of these bad boys
IMG_1664.jpg [ 41.36 KiB | Viewed 141561 times ]


Last edited by Walter on Tue May 29, 2012 10:28 pm, edited 6 times in total.
Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Tue May 10, 2011 10:23 pm
Offline
Team Axis
User avatar

Joined: Tue Jun 08, 2010 7:22 pm
Posts: 1321
Location: BoomTown!
What I have found and others have too is sometimes the pumps get air-locked, to remedy this either get the boat up to 15-20mph and turn on the pumps, or if you're stopped turn on the pumps, if you can’t hear water going into the bags unhook the fill hose and suck on it, the pump will prime very quickly, if it doesn't check to see if the ball valves are open at the fill pump, all 4 pumps have them. While the rear bags are filling it may be necessary to loosen the top vent plug to get air out of the bag, the bags will swell up pretty big and water will continue to flow through the bag into the tank until the tank is full and vents out the side of the boat.


Last edited by Walter on Tue May 29, 2012 10:31 pm, edited 4 times in total.

Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Tue May 10, 2011 10:23 pm
Offline
Team Axis
User avatar

Joined: Tue Jun 08, 2010 7:22 pm
Posts: 1321
Location: BoomTown!
I don't have pictures but some people have experienced the front bag getting water from the drain line on the front tank, the factory has the tank and bag sharing the drain port with a Y connector in the footwell. To remedy this little bug remove the footwell and hook up the drain lines on the Y to the outlets that the vent lines are individually on, for some reason the vents don't seem to burp out water like the drain lines do. this way when the bag and tank are being drained they have their own port to drain out of, the vents aren't really that big of a deal, they'll take care of themselves once the bag and tank get full.


Last edited by Walter on Tue May 29, 2012 11:10 pm, edited 7 times in total.

Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Wed May 11, 2011 7:46 am
Offline
Team Axis

Joined: Fri Feb 18, 2011 2:36 pm
Posts: 69
Great write up Walter!!!


Top
 Profile

 Post subject: Re: How To Hook Up Your Plug N' Play
PostPosted: Wed May 11, 2011 8:19 am
Offline
Team Axis

Joined: Mon Jan 17, 2011 11:16 am
Posts: 106
Location: Wichita
Thanks Walter, this is a very helpful write-up.

I also asked for help from Axis on Facebook and received a video instruction from Matt though it is a slightly different procedure than what you have done. I'll study them both a lille closer when I get the bags in.

Again...I really appreciate your efforts and time, you are clearly an asset to this forum.
